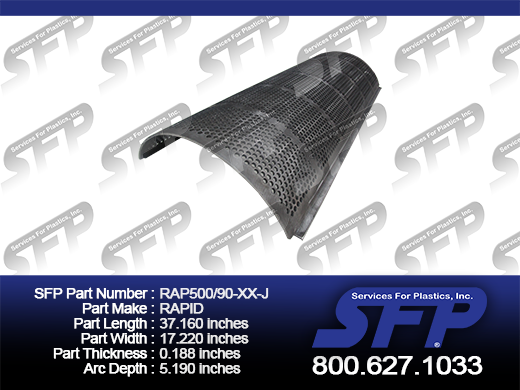

RAP500-90


Rapid Granulator Screen

Model: 500/90


• Made from highest quality US Steel: Mild, Stainless and Plate

• Manufactured to exceed OEM specifications

• Custom screen hole shapes are available in: Circles, Squares, Hexagons and Octagons

• Screen hole sizes are available: 3/32 inch through 3 inch

• Metric hole sizes also available in millimeters or centimeters







Rapid Granulator Replacement Screens

These are the standard hole sizes however we custom manufacture these screens any hole size into any screens, within reason.

Part #: RAP500/90-12-J            Holes: 1/2 inch

Part #: RAP500/90-34-J            Holes: 3/4 inch

Part #: RAP500/90-1-J            Holes: 1 inch

Part #: RAP500/90-112-J            Holes: 1 1/2 inches

Part #: RAP500/90-2-J            Holes: 2 inches

Part #: RAP500/90-212-J            Holes: 2 1/2 inches

Part #: RAP500/90-3-J            Holes: 3 inches

Part #: RAP500/90-12-J            Holes: 12 millimeter

Part #: RAP500/90-16-J            Holes: 16 millimeter

Part #: RAP500/90-20-J            Holes: 20 millimeter

Part #: RAP500/90-24-J            Holes: 24 millimeter

Part #: RAP500/90-28-J            Holes: 28 millimeter

Part #: RAP500/90-32-J            Holes: 32 millimeter

Part #: RAP500/90-38-J            Holes: 38 millimeter

Part #: RAP500/90-50-J            Holes: 50 millimeter

Part #: RAP500/90-65-J            Holes: 65 millimeter

Part #: RAP500/90-75-J            Holes: 75 millimeter

These are the standard hole sizes however we custom manufacture these screens any hole size into any screens, within reason.

Granulator Screen Size

Part Length: 37.160 inches

Part Width: 17.220 inches

Part Thickness: 0.188 inches

Arc Depth: 5.190 inches
