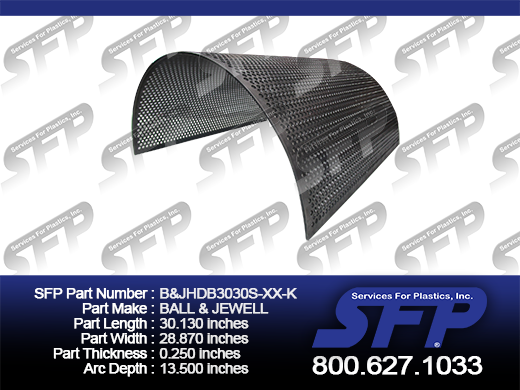

B&JHDB 3030SX


Ball & Jewell Granulator Screen

Model: HDB 3030S


• Made from highest quality US Steel: Mild, Stainless and Plate

• Manufactured to exceed OEM specifications

• Custom screen hole shapes are available in: Circles, Squares, Hexagons and Octagons

• Screen hole sizes are available: 3/32 inch through 3 inch

• Metric hole sizes also available in millimeters or centimeters







Ball & Jewell Granulator Replacement Screens

Part #: B&JHDB 3030S-332-K            Holes: 3/32 inches

Part #: B&JHDB 3030S-18-K              Holes: 1/8 inches

Part #: B&JHDB 3030S-532-K            Holes: 5/32 inches

Part #: B&JHDB 3030S-316-K            Holes: 3/16 inches

Part #: B&JHDB 3030S-732-K            Holes: 7/32 inches

Part #: B&JHDB 3030S-14-K              Holes: 1/4 inches

Part #: B&JHDB 3030S-516-K            Holes: 5/16 inches

Part #: B&JHDB 3030S-38-K              Holes: 3/8 inches

Part #: B&JHDB 3030S-12-K              Holes: 1/2 inches

Part #: B&JHDB 3030S-58-K              Holes: 5/8 inches

Part #: B&JHDB 3030S-34-K              Holes: 3/4 inches

Part #: B&JHDB 3030S-78-K              Holes: 7/8 inches

Part #: B&JHDB 3030S-1-K                Holes: 1 inches

Part #: B&JHDB 3030S-2-K                Holes: 2 inches

Part #: B&JHDB 3030S-3-K                Holes: 3 inches

Granulator Screen Size

Part Length: 30.130 inches

Part Width: 28.870 inches

Part Thickness: 0.250 inches

Arc Depth: 13.500 inches
